How to use my Dymo?

You are here:
← All Topics

The Dymo LabelWriter 450 Turbo (US model) is a plug and play printer. Dymo is a local printer, so the printing should be ordered from the local computer connected with the Dymo.

LabCollector only supports this model.

Note: NPAPI JavaScript is not supported by Chrome, so Dymo LabelWriter may not work with this browser.

INSTALLATION

When you connect the Dymo for the first time your system proceeds automatically to the installation.

To check that the Dymo is correctly installed in your system:

  • Go to Settings > Printers and Scanners (Windows)
  • Go to System Preferences >Printers and Scanners (MAC)

Verify that on your list of printers you have Dymo LabelWriter 450 Turbo.

Otherwise, go to the Dymo website for download and follow the driver installation manual.

Please use the Dymo software up to 8.5.4 or version 8.7.1 (cryogenic label models are not compatible with 8.6.x): Windows / Mac
http://www.dymo.com/en-US/dymo-user-guides


USE IN LABCOLLECTOR

In your LabCollector, you can easily print by clicking on the icon printer accessible on the left icon series of your record.

1. Include a comment if needed
2. You can add a field on your label: name, date, etc.
3. Use your own unique code instead of the LabCollector ID to design your barcode.
4. Select your label model:

  • Dymo labels are already configured in LabCollector: DTCR-1000, DTCR-2000, DTCR-3000, and DTCR-6000. For more information about the products compatible with LabCollector go to Storage Accessories.

5. Dymo Printer is automatically on the list of your printers.
6. You can choose the number of copies to print.

Note: We recommend using Internet Explorer for label printing

TROUBLESHOOTING
If the DYMO doesn’t appear as an option when you click on the printer symbol, please check the following points:
1. Ensure you have a version which is either version 8.5.4 (or lower) or version 8.7.
2. On Windows go to the system tray in the bottom right corner of your screen and click on the upward arrow. Right-click on the DYMO symbol shown below and select Diagnose.

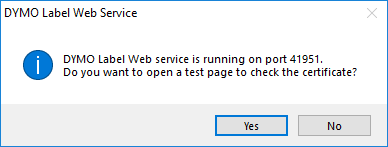

The following popup appears, asking you to open a test page to check the certificate.

After selecting Yes a page opens in your default browser with a link similar to the following (it depends on what is the default port): https://localhost:41951/DYMO/DLS/Printing/Check.
Depending on the browser you will get a message such as the one below.

Click on Advanced and Proceed to {domain}. Once you have confirmed the certificate DYMO label printing should be enabled for that browser. Use the same link as before (https://localhost:41951/DYMO/DLS/Printing/Check) for each of your browsers.

For Chrome enter the following link in the address bar – chrome://flags/#allow-insecure-localhost – enable Invalid certificates for resources loaded from localhost, and relaunch the browser.
